German Make RIGID BORESCOPE and ACC
German Make RIGID BORESCOP
and ACC
Rigid borescopes transmit the image via the computer-calculated optical rod lens system to the eyepiece.
- Mobile and stationary applications in
connection with the EN·sure camera system - Quality assurance
- Inspection of
– cast parts
– turned and milled parts
– aircraft engines
– large and small engines
– and many more.
Rigid endoscope
Rigid endoscopes, also known as borescopes, are used for the visual inspection of cavities and narrow bores but also for smaller components or assemblies. Rigid borescopes transmit the image via the computer-calculated optical rod lens system to the eyepiece. The main focus is on excellent image rendition and resolution, which allows for diagnosissecure inspections. The metal shaft and special glass cover make the endoscope extremely resistant to damage and wear and ensure an optimal protection of the optical system. ENDO INDUSTRIAL offers rigid endoscopes in different versions.
Flexible endoscopes
Flexible glass fiber endoscopes are easy to handle and extremely flexible. They make it possible to see into convoluted spaces that would otherwise be inaccessible to the human eye. The endoscope owes its flexibility to the unique fiber optic image guide system. These optical fibers transmit the image from the component to the human eye or to the monitor via a camera system. In combination with a powerful light source this high-quality system will give you an excellent, sharp and bright image.
Cameras and documentation systems
EN.sure
HD camera with USB 3.0 / USB-C connection
incl. white light LED light source
EN.sure Plus
HD camera with camera head and 3.5‘‘ montior
incl. white light LED light source
EN.sure Plus stationary LED light source
with docking funciton, usable in connection
with EN.sure Plus
EN.mobil
Mobile camera, attachable
HD Camera adaptor
to be connected on all C-mount threads, focal length 14 mm /
18 mm / 22 mm / 25 mm / 28 mm / 35 mm / Zoom
(18 - 35 mm)
Light sources
LQ-LED-200 Stationary LED light sourcer
Light intensity 900.000 Lux
Color temperature 5.500 K
incl. separate power supply and robust case
LQ-HH-10W portable battery LED light source
Performance 3-10 W (3 steps)
Color temperature 5.700 K
Light intensity 200.000 Lux
LQ-HH-10W portable battery LED light source
Performance 3-10 W (4 steps)
Color temperature 6.000 K
Light intensity 120.000 Lux
Light cables
Glass fiber light cable, length 180 cm / 250 cm
Outer diameter 10 mm, active diameter 3.5mm
Glass fiber light cable, length 180 cm / 250 cmbr>
Light connector angled 90° at endoscope end
Outer diameter 10 mm, active diameter 3.5mm
Monitors

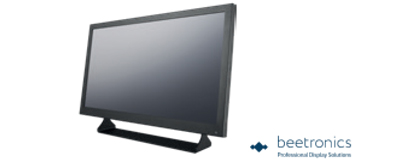

13“ / 15“ / 17“ / 19“ industrial HD monitor, metal housing
